LPMS 900hMD

Turntable Type Molding System with External Melter(s)

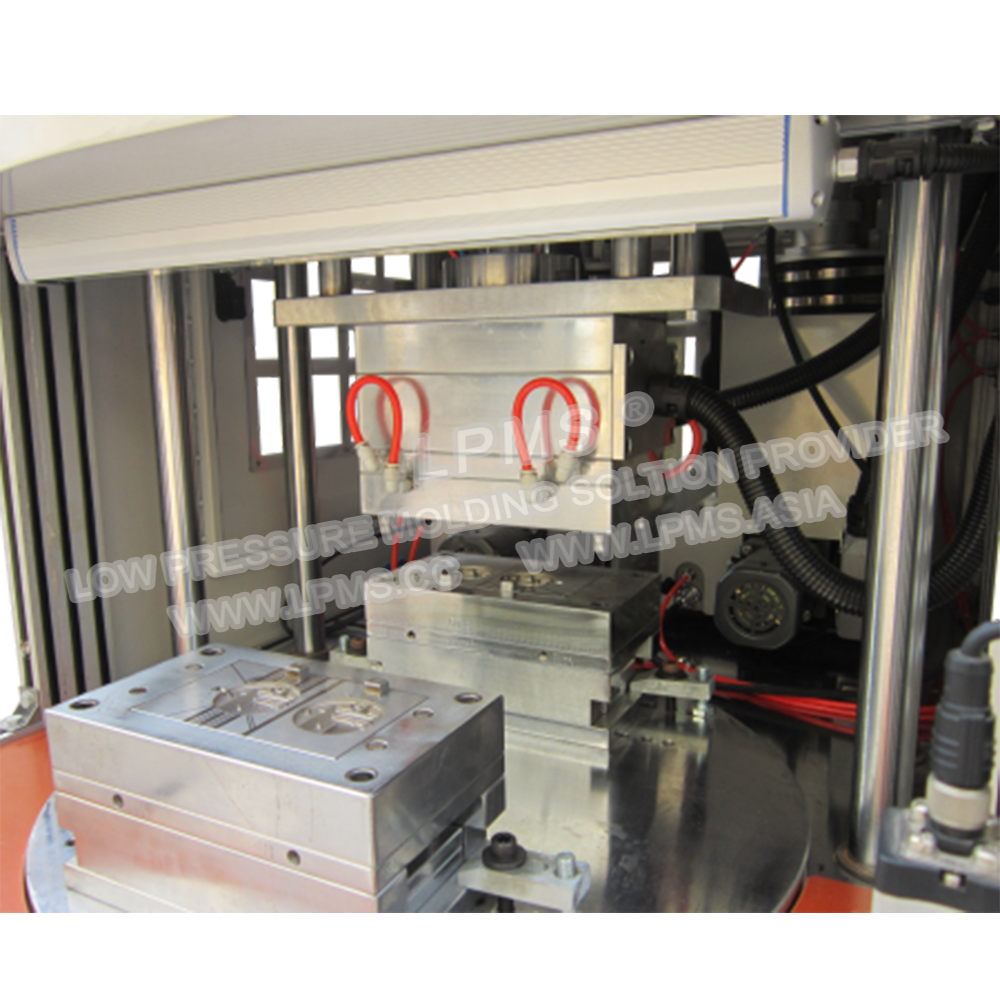

One upper mold handles two bottom molds on turntable less mold cost and high productivity.

Equipped with latest LPMS gear pump, machine is compact and reliable.

Hot-Runner system, Hot nozzles are located on top of product,injection time is shorter,resin is saved and appearance quality is better

Injection applications position are adjustable for fitting different battery sizes. More flexible.

Air-Over-Oil cylinder provide more clamping force and speed for clamping. It meets the requirement of large size Lithium Polymer batteries for larger resin weight.

Precise injection pressure can be regulated on operation panel.

Individual temperature control at tank, tube, and injection applicators.

Machine equipped with dual melters tanks for big shot size product and remains the production stabile.

Dual-Palm-Actuated, Extreme Safety Light Curtain and Safety Door to keep operator in safe during operation.

Machines are equipped with ejection system; parts are Easily removed after molding. Mold sets can be easily changed in a few moments.

Application

LPMS^? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

The benefits of vertical injection is that when smaller parts allow the cavity to be split into two or four cavities. This allows shorter runners and higher output per cycle. It’s suitable for multiple cavity mold for cable, wire harness, LED, etc.

Applications span many industries including: Automotive, PCBA，Coil,Fiber-Optiv,LED Lighting, Wire and Cable,and Electronics

Specification

Machine Size / Weight	1020x1200x2010mm/450Kg 40.16×47.24×79.13in/992lbs
Working Station Height	855mm 33.66in
Packing Size / Weight	1150×1300×2100mm/500Kg 45.28×51.18×82.68in/1102lbs
Melting Tank	LPMS MT05-900HMD x2
Maximum shot size	5.8g / RPM
Auto Feeding System	Optional
Gun Model & Tip	Hot Runner System
Each Station Gun Tip Qty	2 or 4 depends on part design
Gun Y direction adjusting range	50--100mm
Heated Hose	LPMS-TH16Jx2
Electricity	200-240VAC/50or60Hz
Temperature Control Zones	10 or 12 according to the part
Temperature Range	Ambient up to 250°C / 485°F
Max. Power	11Kw
Pump Motor	120 W
Min. Air Pressure	0.5MPa \| 73 Psi
Air Consumption	0.1m3/min
Clamping	Air Over Oil Cylinder
Clamping Force	Max.5 Tons ( Optional 10 Tons )
Clamping Stroke	75mm \| 2.95 in
Mold opening force	350 Kg / 772 lbs
Ejector	Air Cylinder
Ejector Force	980 N
Ejector Stroke	10 mm \| 0.39 in
Safety Protection	Light Curtain, emergency stop button and Safety door
Control System	7 ”HMI , PLC controlled
Mold Set Size	300 mm x 260 mm x 390mm 11.81 in x 10.24 in x 15.35 in Please Refer to Mold set dimension below
Max . Part Size	100 mm x 90 mm x 18 mm 3.94 in x 3.54 in x 0.71 in
